NEW FMS 76-65 H.F. TUBE MILL
We are pleased to offer for your consideration the following new tube mill: Ref. No. M917
Designated Model: FMS TM 76-65
Hand of Operation: Right to Left
Materials: Low Carbon Steel, Yield Strength 50,000 PSI
Strip Width Range: 40 mm to 240 mm
Strip Thickness: Max. .140” (3.5 mm)
Tube OD Range: Round: 1/2” to 3” (76.2 mm)
Rec. & Square: Accordingly
Tube Wall Range: Max. .140” (3.5 mm)
Mill Speed: Max. – 300 FPM for small diameter and light gauge tubing
Supply Voltage: 480 Volt, 3 Phase, 60 Hz
Control Voltage: 110 Volt, Single Phase, 60 Hz
EQUIPMENT SUMMARY

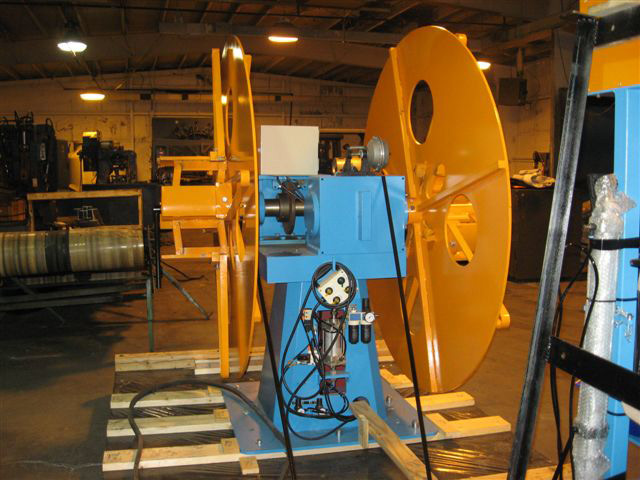

FMS Double 10,000 Lbs. Uncoiler
Double Arm Type
Load Capacity: 10,000 Lbs.
Strip Width: Maximum - 12” (305 mm)
4-Leaf Hydraulic Wedge Type Mandrel Expansion
Manual Mandrel Turning
Manual Base Rotation with Automatic Position Stop Mechanism
Two Stage Air Brakes, Low Drag and High Tension
Full Back Plate with Peek Holes
Coil Keepers: 4
FMS SWO-250 Semi-Automatic Shear End Weld Unit
Portable, Push-Away Type
Max. Strip Width: 10” (250 mm)
Max. Strip Thickness: .140” (3.5 mm)
Hydraulic Clamps
Hydraulic Shear
Automatic TIG Weld
FMS Horizontal Strip Accumulator
Model: HAC-D-12
Disc Rotation (Turn Table) Type
Strip Width: 1.6” to 12” (40 mm to 305 mm)
Strip Thickness: .020” to .140” (.500 mm to 3.5 mm)
Strip Entry Guide Unit to Turn Strip from Flat to Straight Up
Driven Strip Pinch Roll with Pneumatic Roll Pinch
Disc-Rotation Looping Unit
Flexible Looing Type
Strip Storage Capacity: 500 m to 1000 m
Exit Strip Guide Unit to Turn Strip from Straight Up to Flat

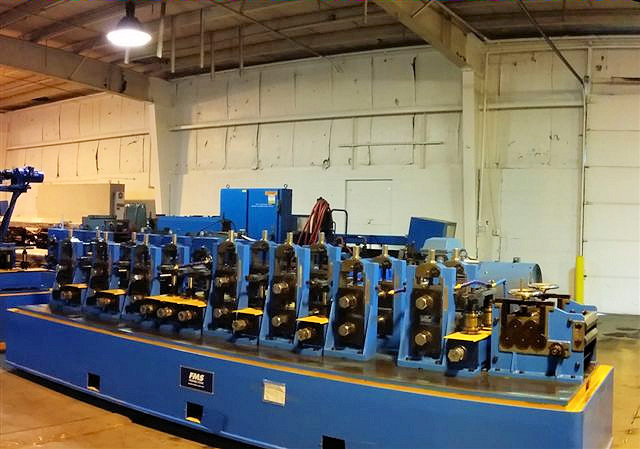

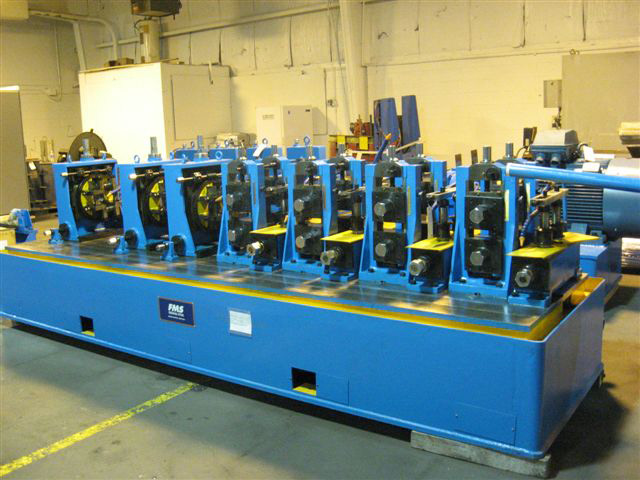

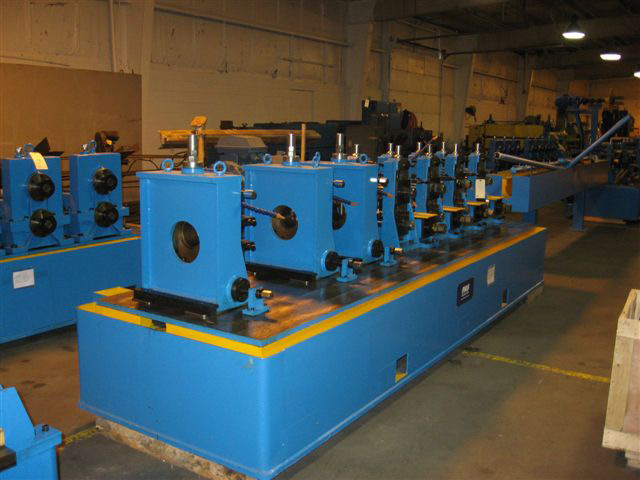

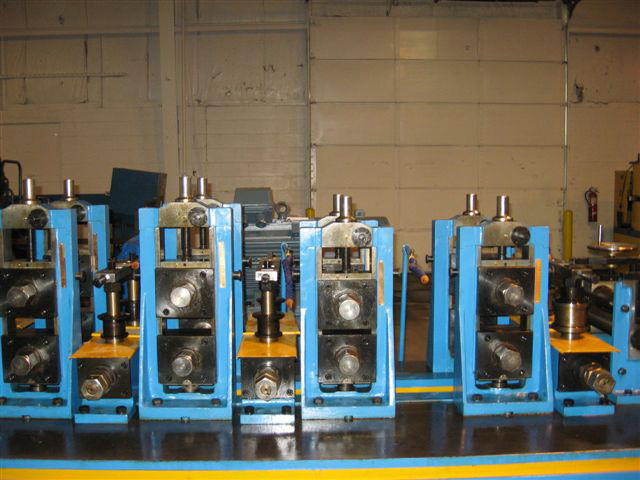

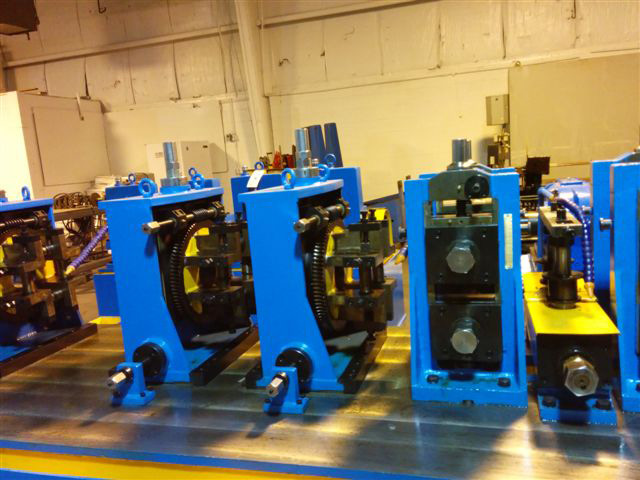

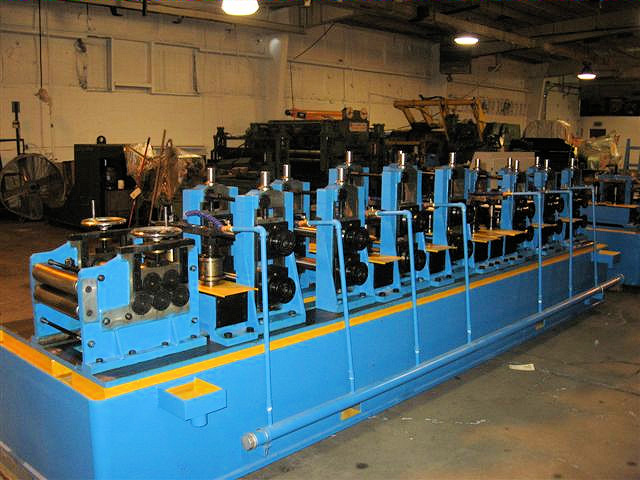

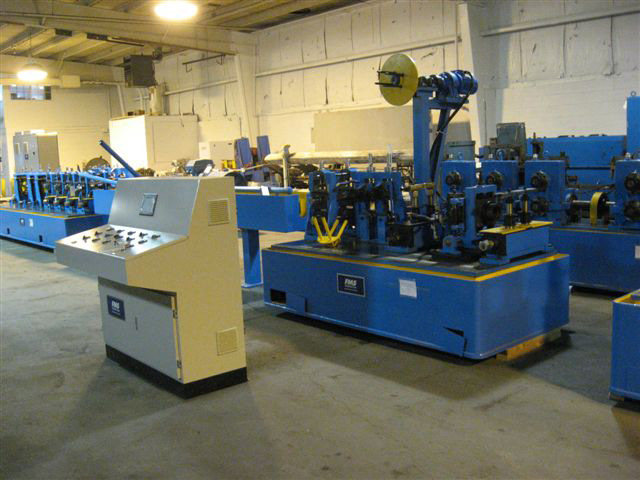

FMS Forming Mill
5-Roll Idle Flattener
4 x Universal Driven Breakdowns with Single Point Adjustment
3 x Universal Driven Fin Passes with Single Point Adjustment
8 x Idle Side roll Stands
Shaft Size for Driven Stands - 65 mm
Shaft Size for Idle Side Roll Stands: 45 mm
All Driven Stands have Overload Crash Protection. (Saves bearings, shafts and stands)
Materials: Driven Stands- Cast Steel JIS SC480.
Gear Boxes Housing – Cast Steel JIS SC 480
Shafts – SCM 440 (42 CrMo). Heat Treated
Spiral Umbrella Gears – DIN 20 MnCrTi4, Heat Treated
Bearings: NTN (Japan) or Equivalent
Motor Power for Forming Mill: 1x 75 KW VFD AC Motor.
FMS AC Mill Drive
NEMA/IP 52 Compliance for Electrical Wiring, Connections and Cabinets
All electrical components, unless specified otherwise, are CE/UL labeled.

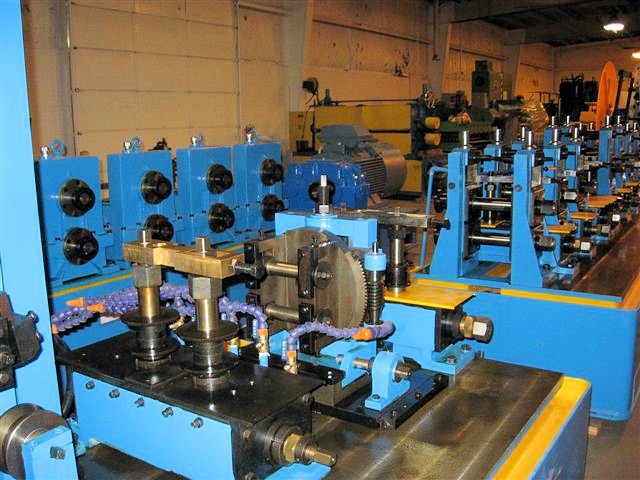

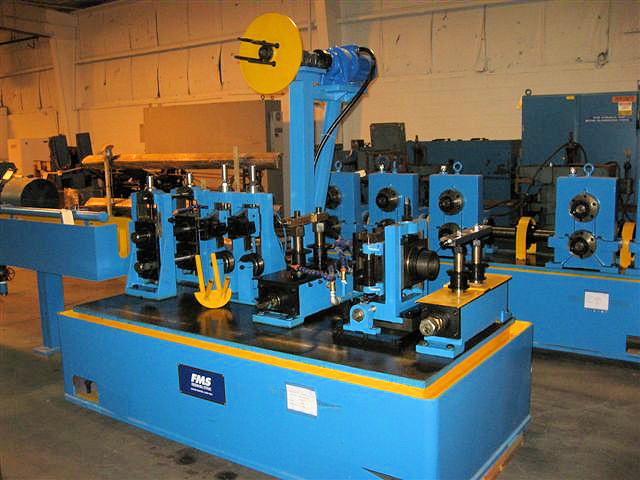

Weld Section
3-Way Adjustment Seam Guide Unit
2-Roll Type Weld Roll Box
FMS 200 KW Solid-State HF Welder
Tandem Scarfing Unit with Pneumatic Quick Lifting for Knife
Powered Bead Winder
10’ Water Quenching Cooling Zone

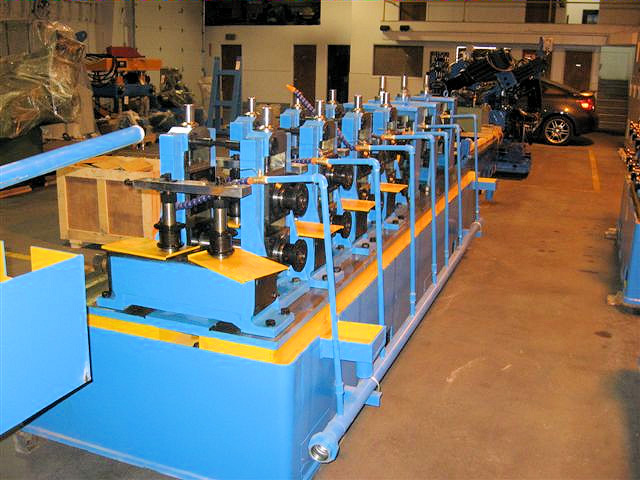

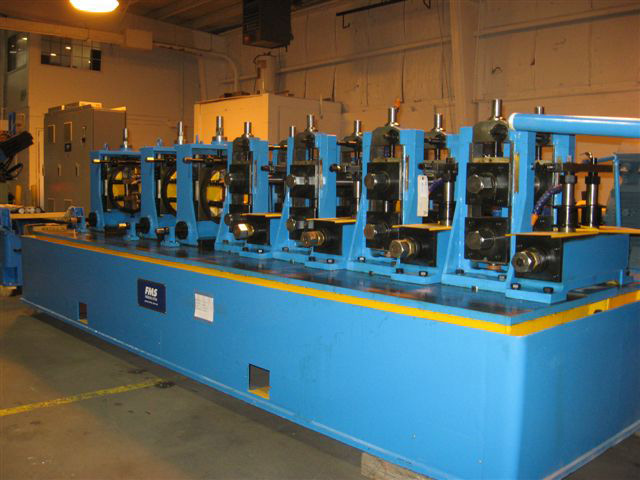

Sizing Mill
4 x Universal Driven Sizing Passes with Single Point Adjustment
4 x Idle Sideroll Stands
3 x Turksheads
Shaft Size for Driven Stands - 65 mm
Shaft Size for Idle Sideroll – 45 mm
All Driven Stands have Overload Crash Protection. (Saves bearings, shafts and stands)
Materials: Driven Stands- Cast Steel JIS SC480.
Gear Boxes Housing – Cast Steel JIS SC 480
Shafts – SCM 440 (42 CrMo). Heat Treated
Spiral Umbrella Gears – DIN 20 MnCrTi4, Heat Treated
Bearings: NTN (Japan) or Equivalent
Motor Power for Sizing Mill: 1x 75 Kw VFD AC Motor.
FMS AC Mill Drive
NEMA/IP 52 Compliance for Electrical Wiring, Connections and Cabinets
All electrical components, unless specified otherwise, are CE/UL labeled.

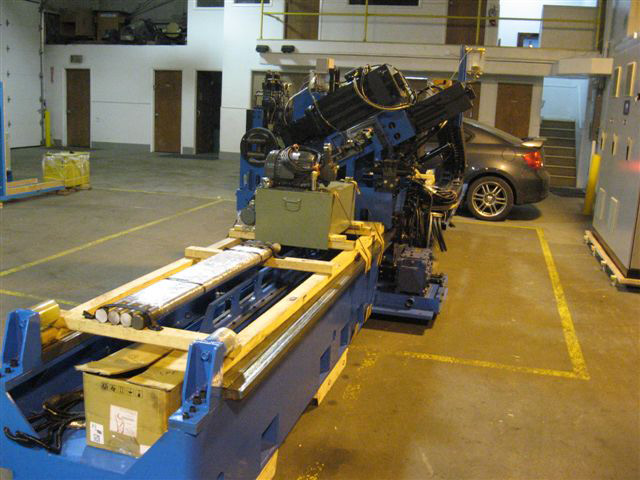

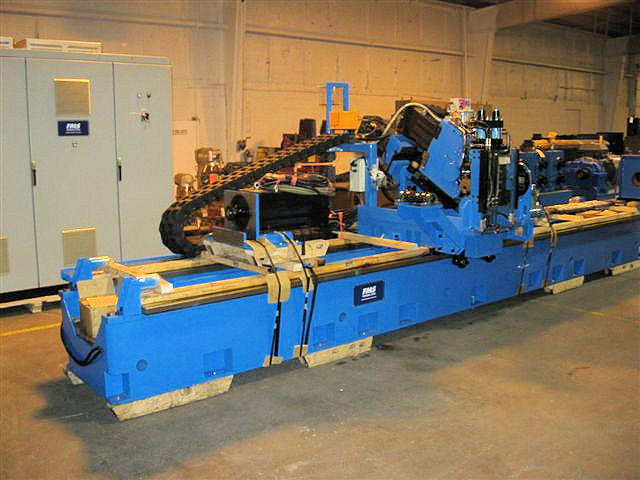

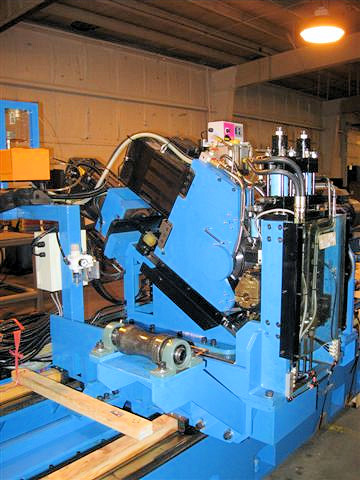

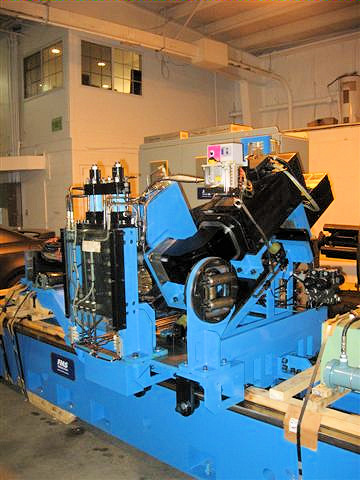

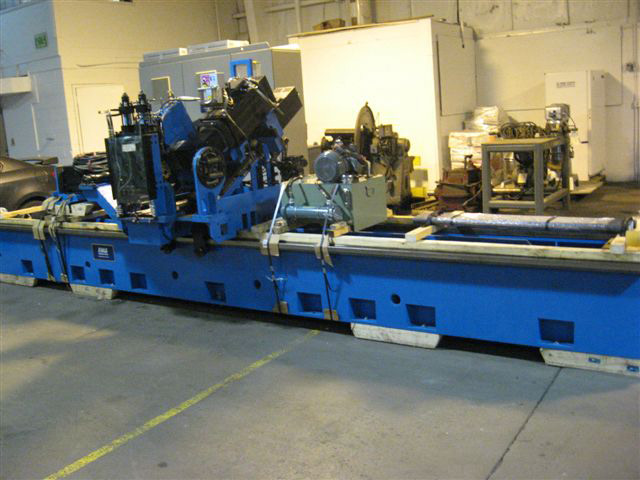

FMS Flying Cut-Off
Cold Saw Type
Computerized Length Control with Touch Screen HMI
Tube OD Range: Max. 3” (76.2 mm)
Tube Wall Thickness: Max. .140 (3.6 mm)
Tube Cut Length: 4 M – 10 M
Cut Tolerance: + 2 mm
Saw Blade OD: 600 mm
Saw Blade Cutting Traverse by Siemens Servo Motor
Saw Blade Cutting by Siemens Servo Motor
Pipe Clamps: Pneumatic
Cut-Off Carriage Traverse: Rack & Pinion with Siemens VFAC Motor
Siemens Drive Controls
Run Out and Dump Table
Powered Roller Run-Out Conveyor with Dump Table
Manual Bundling Station
