NEW FMS TM LM 76-63 H.F. TUBE MILL:
We are pleased to offer for your consideration the following new tube mill: Ref. No. M892
Designated Model: FMS TM LM 76-63
Hand of Operation: Left to Right
Materials: Low Carbon Steel, Yield Strength 50,000 PSI
Strip Width Range: 40 mm to 240 mm
Strip Thickness: Maximum – .130” (3.5 mm)
Tube OD Range: Round – 1/2” to 3” (76.2 mm)
Rec. & Square: Accordingly
Tube Wall Range: Maximum – .135” (3.4 mm)
Mill Speed: Maximum - 265 FPM (80 MPM) for small diameter and light
(Thru 2 Speed Gear Reducers) gauge tubing
Max. 150 FPM for Tubing 3”OD x .135” Wall
Supply Voltage: 460 Volt, 3 Phase, 60 Hz
Control Voltage: 110 Volt, Single Phase, 60 Hz
EQUIPMENT SUMMARY
FMS UCD -5 PR Double Arm Uncoiler:
Double Arm Type
Load Capacity: 5 Metric Tons (11,000 Lbs.) on Each Arm
Coil OD: Max. 72”
Coil ID Range: 18” to 22”
Strip Width: Max. 12” (305 mm)
4-Leaf Hydraulic Wedge Type Mandrel Expansion
Manual Strip Feed-Up Two Stage Air Brakes, Low For Drag and High For Brake;
Equipped with Manual Brake Release Switch for Easy Strip Threading
Hydraulic Powered 180 Degree Base Rotation with Automatic Pneumatic Position Stop and
Locked
Full Back Plate with Peek Holes
Coil Keepers: 4 on Each Arm
FMS SWO-250 Semi-Automatic Shear End Weld Machine:
Portable, Push-Away Type
Max. Strip Width: 10” (250 mm)
Max. Strip Thickness: .135” (3.5 mm)
Hydraulic Clamps
Hydraulic Shear
Automatic Weld Gun Traverse with One Push Button
Lincoln TIG Weld
FMS HAC-D-10 Horizontal Strip Accumulator:
Model: HAC-D-10
Disc Rotation (Turntable) Type
Strip Width: 1.6” to 10” (40 mm to 254 mm)
Strip Thickness: .020” to .140” (.500 mm – 3.5 mm)
Strip Entry Guide Unit to Turn Strip from Flat to Straight Up
Driven Strip Pinch Roll with Pneumatic Roll Pinch
Disc-Rotation Looping Unit
Flexible Looing Type
Strip Storage Capacity: 500 m to 1000 M
Exit Strip Guide Unit to Turn Strip from Straight Up to Flat
FMS Forming Mill:
Strip Guide
4 x Universal Driven Breakdowns w/ Single Point Synchronous Height Adjustment and Digital Position Read Out
3 x Universal Driven Fin Passes w/ Single Point Synchronous Height Adjustment and Digital Position Read Out
7 x Idle Side-roll Stands
Shaft Size for Driven Stands – 2-1/2” (63.5 mm)
Shaft Size for Idle Side Roll Stands: 1 3/8”
Materials: Housing for Stands - Cast Steel
Gear Boxes – Rigid Worm Gear Type
Driven Shafts – SNCM 8 Heat Treated
Idle Shafts – SCM 4, Heat Treated
Bearings: Japanese Brand Name Bearings
Motor Power: 1 x 75 HP SIEMENS Vector AC Motor
NEMA/IP 55 Compliance for Electrical Wiring, Connections and Cabinets
All electrical components, unless specified otherwise, are CE/UL labeled.
FMS Weld Section:
1 x 2-Roll Seam Guide Stand w/ Rotary Adjustment
1 x 3-Roll Weld Roll Box
Tandem Scarfing Unit with Pneumatic Quick Lifting for Knife
1 x Powered Bead Winder
1 x Iron Roll Stand
Cooling Zone:
1 x 15’ with Quench (Trough Type)
FMS Sizing Mill:
1 x De-Twist Stand
4 x Universal Driven Sizing Passes w/ Single Point Adjustment
4 x Idle Side-roll stands
Shaft Size for Driven Stands – 2 ½” (63.5 mm)
Shaft Size for Idle Side Roll Stands: 1 3/8”
Materials: Housing for Stands - Cast Steel
Gear Boxes – Rigid Worm Gear Type
Driven Shafts – SNCM 8. Heat Treated
Idle Shafts – SCM 4, Heat Treated
Bearings: Japanese Brand Name Bearings
1 x 4-Roll Turkshead
1 x 8-Roll Turkshead
Motor Power: 1 x 75 HP Siemens Vector AC Motor
NEMA/IP 55 Compliance for Electrical Wiring, Connections and Cabinets
All electrical components, unless specified otherwise, are CE/UL labeled.
FMS FCO 76-CS Flying Cut-Off:
Model: FMS FCO 76-CS
Cold Saw Type, minimum or no burrs at tube cut end
Computerized Length Control w/ Touch Screen HMI
LUSTi (German) Drive System
Mitsubishi PLC
Tube OD Range: Maximum 3” (76.2 mm)
Tube Wall Thickness: Maximum .135” (3.4 mm)
Tube Cut Length: 4 m to 7 m
Cut Tolerance: + 1.5 mm (.060”) @ 20 Ft Cut Length
Cut Speed: Max. 275 FPM for 1” OD light gauge tubing, 150 FPM for 3” OD x .135” Wall Tubing
Saw Blade Cutting Traverse: Servo AC Motor
Variable Speed Saw Blade Rotation: Servo AC Motor
Pipe Clamps: Hydraulics
Cut-Off Carriage Traverse: Rack & Pinion with Servo AC Motor
FMS Powered Run Out and Dump Table:
Powered Roller Run-Out Conveyor with Dump Table
Manual Bundling Station

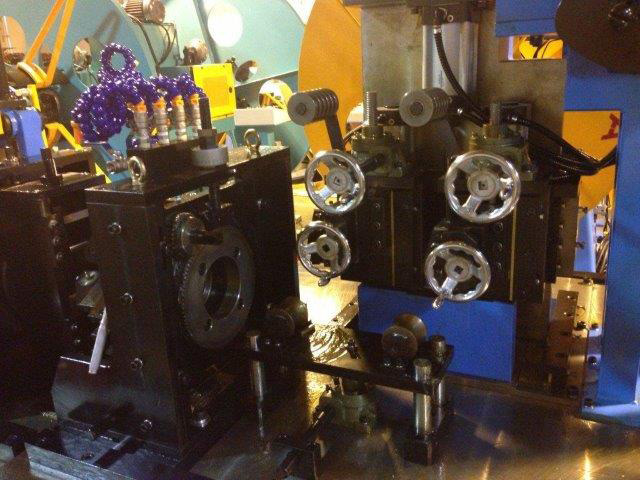

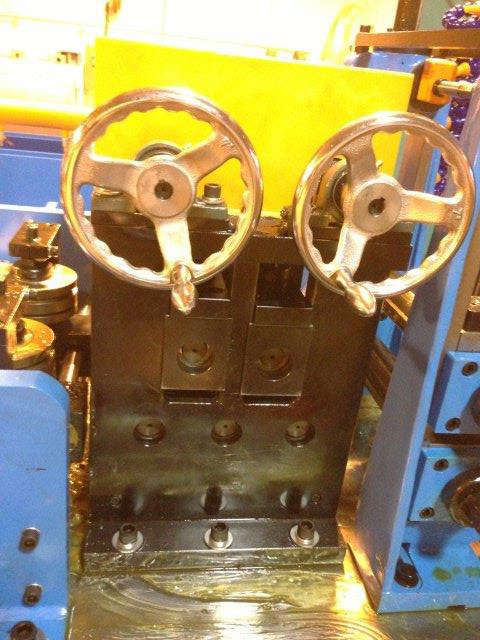

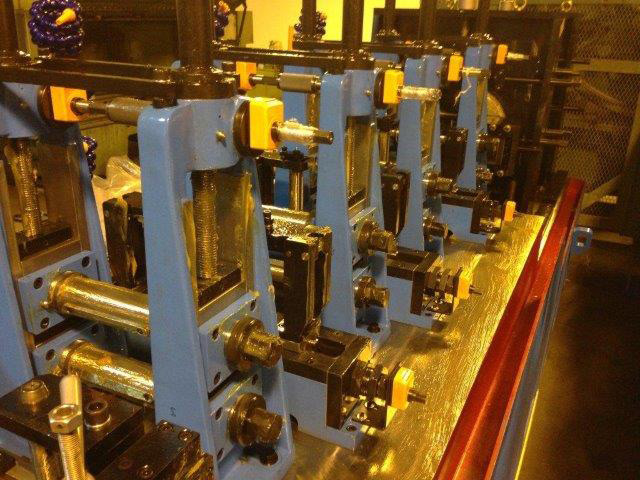

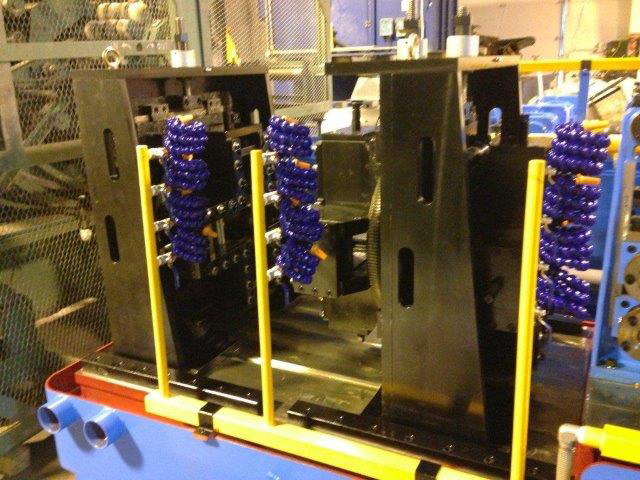

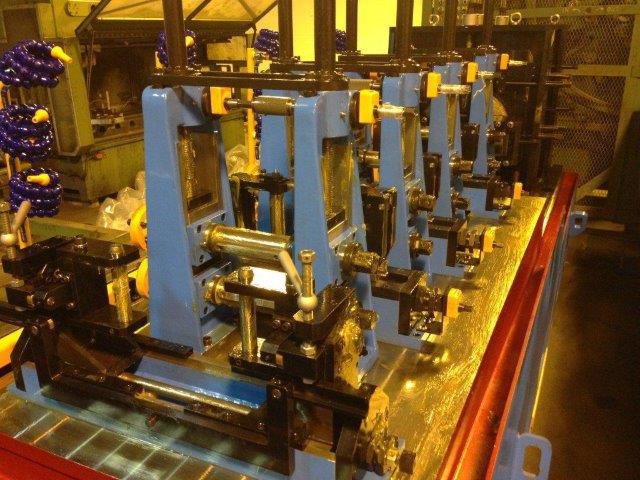

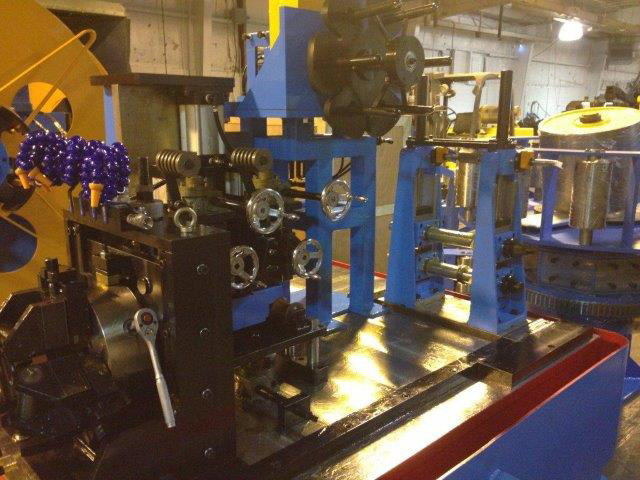

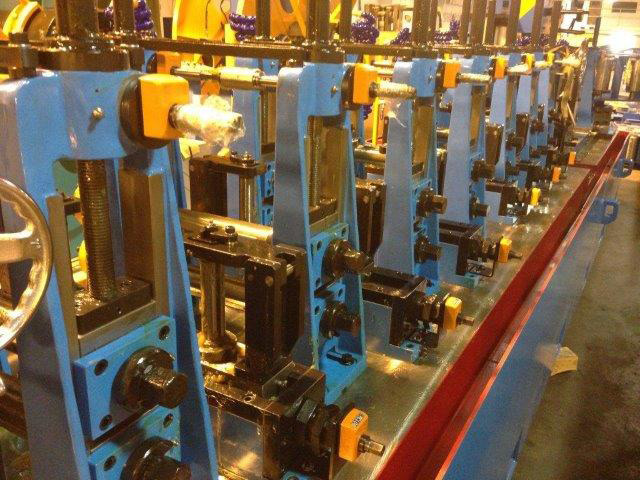

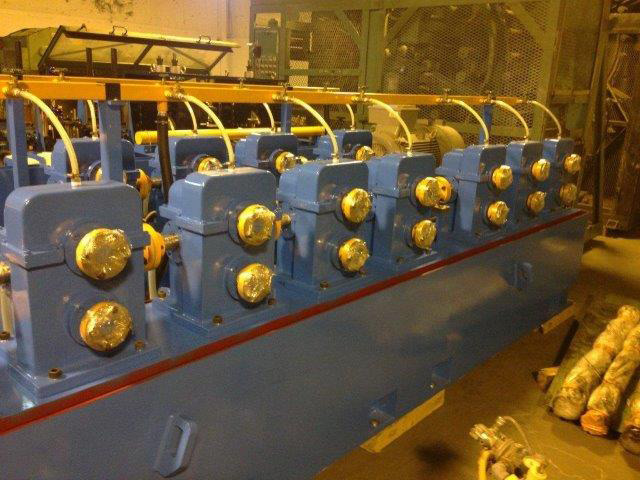

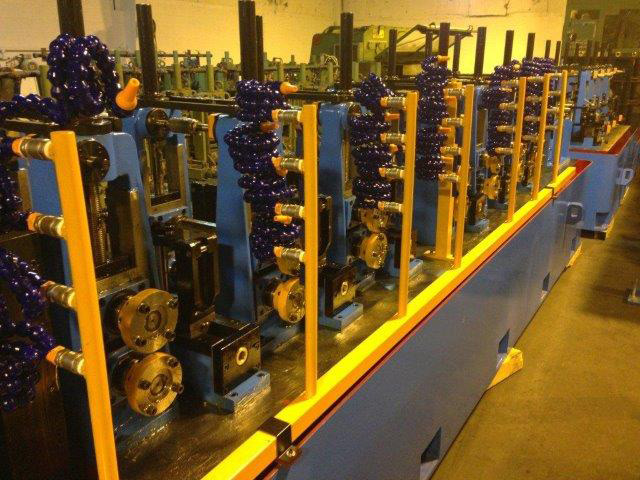

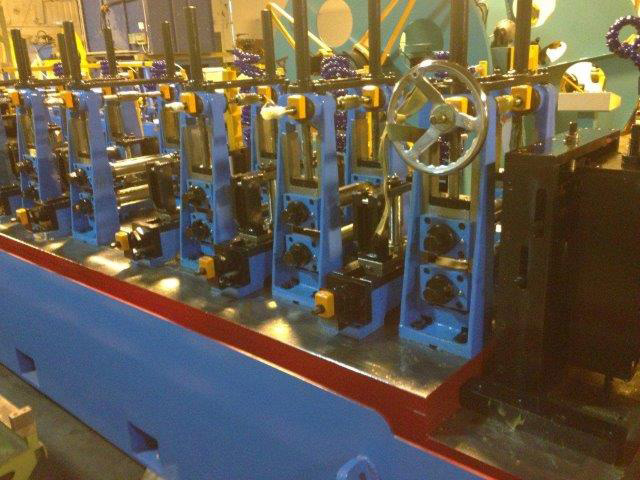

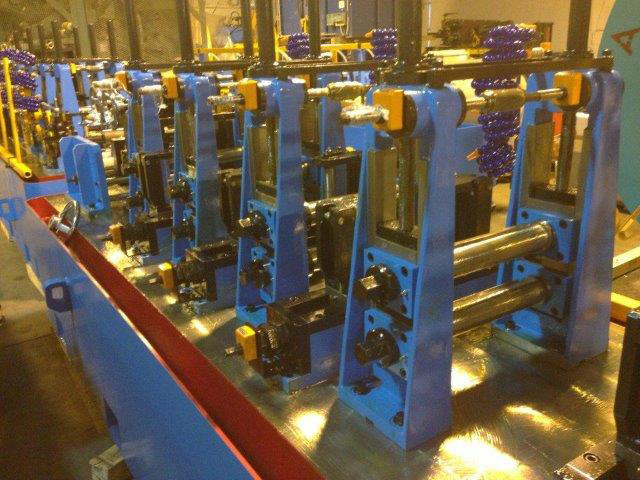

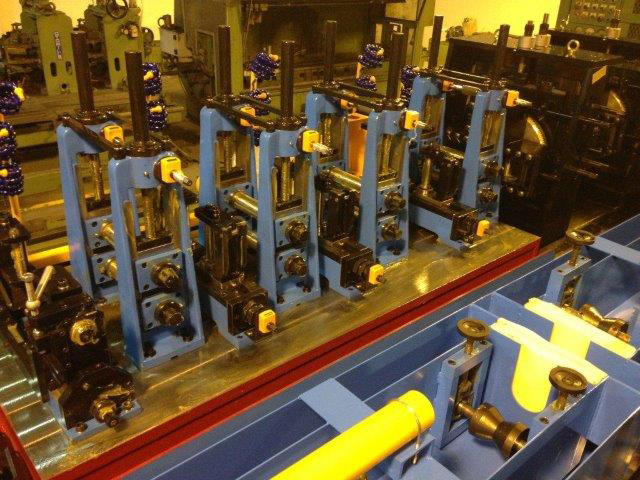

Photos of a Similar Tube Mill; For Reference Only.
